7″ Full HD Multi Channel Drive Recorder Kit (CK-DVR4204)

7″ Full HD Multi Channel Drive Recorder Kit (CK-DVR4204)

$1,999.95incl. GST
Product Enquiry

Description

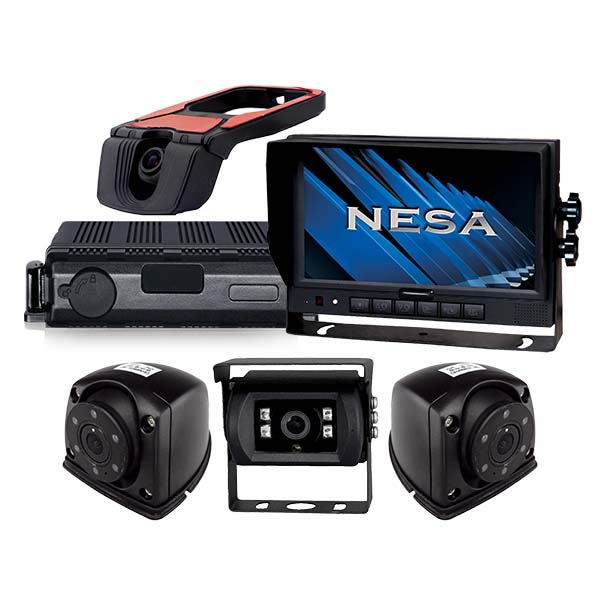

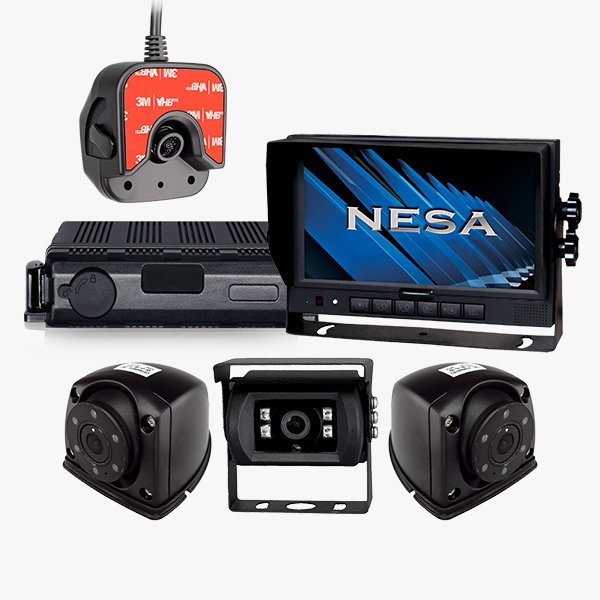

Full HD Commercial Grade Multi Channel Drive Recorder kit – DVR with Front, Rear and Side Cameras and 7″ HD Monitor

DVR-4200AHD – 4 Channel Full HD Drive Recorder

The DVR-4200AHD is a heavy duty, water proof, Full HD 4 channel DVR with GPS. It can connect up to four cameras, each with an individual trigger to record real time video in Full HD 1080p. Recordings are stored on an internal 2.5” HDD or SSD (up to 1TB, purchased separately) with SD card backup (up to 128GB). WiFi or USB3.0 data transfer, so no need to remove the internal drive. GPS to log the position and speed of the vehicle. Playback/monitor on any screen via the CVBS/RCA video output or connect to either Nesa NSM-DVR42T7 or NSM-DVR42T10 monitors for touchscreen control. Multiple recording modes including alarm and motion detection.

Optional extras: Dash mount display w/event log button (DVR-42PANEL)

Number of ChannelsResolution & Bitrate32GB64GB128GB256GB512GB1024GB
1 ChannelD1 (1Mbps)7515030060012002400
720p (2Mbps)38751503006001200
1080p (4Mbps)19
38
75
150
300
600
4 ChannelsD1 (1Mbps)19
38
75
150
300
600
720p (2Mbps)10
19
38
75
150
300
1080p (4Mbps)510193875150

AHD-FFW – Full HD Forward Facing Camera

No longer do you need to try to adapt a rear camera to the front of a vehicle. Our AHD-FFW is specifically designed for this purpose. At Full HD 1080p resolution, the AHD-FFW is designed for use with HD multi-channel drive recorders.

The AHD-FFW features an all glass lens with an aperture of f2.0 for high performance in low light, a Sony CMOS sensor with wide dynamic range and anti-flicker and a wide view angle of 120° to cover the entire front view from the vehicle. 3m cable included.

Note, this camera does not have a microphone for audio.

CCD-073AHD – Full HD Heavy Duty Waterproof Camera

The CCD-073AHD is a premium quality Sony Full HD 1080p CCD sensor encased in a heavy-duty metal housing with an IP69K water resistant rating. With adjustable view angle, flexible installation: Can be mounted on rear, front, or either side of vehicles, super wide 130°, Infrared LED’s for low light image enhancement and built in microphone.

CCS-501AHD – Full HD Side Mount CCD Camera

Uniquely designed for the elimination blind spots of trucks or vans. The CCS-501AHD is a premium quality Sony Full HD 1080p CCD sensor encased in a heavy duty metal housing with an IP69K water resistant rating. With adjustable view angle, flexible installation: Can be mounted on rear, front, or either side of vehicles, super wide 150°, Infrared LED’s for low light image enhancement and built in microphone.

NSM-7300AHD – 7” Full HD Monitor

HD reverse monitor

The NSM-7300AHD is built tough with a solid reputation for reliability. Able to use newer technology Analogue High Definition (AHD) 1080p cameras as well as the older standard definition cameras. Can also mix different camera types if multiple cameras are already installed and the monitor is just being upgraded. Other improvements over the previous model include: Higher contrast, increased brightness, improved view angle and a higher resolution screen (1024×600 vs 800×480). PAL and NTSC auto switch as standard. Can operate on 12v or 24v systems, and outputs 12v to the cameras even when used on 24v.

Supplied with a U bracket for dash mounting, a flush mount shroud as a different mounting option, removable sun shield, IR remote control and 3 x looms as well as 4 pin to RCA adapters for universal camera connection.

*Kits includes 1x 020-4PIN 20m cable for rear camera and 2x 006-4PIN 6m cables for side cameras*
