Truck Camera & Monitor Kit (CK-Truck4)

Truck Camera & Monitor Kit (CK-Truck4)

$499.00 $429.00 incl. GST
Product EnquiryBuy Now

Neltronics Brings Truck Camera with Aftermarket Features

Truck camera captures both front and interior views. Truck camera functions like a reverse camera for heavy duty commercial vehicles. This camera is for reversing and blind spots.

Truck camera enhances driver awareness that results in reduction in accidents and improved passenger relations. Neltronics brings in certain specifications in truck camera. As for example- fully waterproof, weather resistant housing, day/night sensor for auto adjustment, infrared LED light, selectable reverse or forward image, LCD monitor with digital panel etc. There are U bracket and flush mount options. Neltronics Truck camera comes up with high resolution image quality with perfect contrast, brightness and dimension.

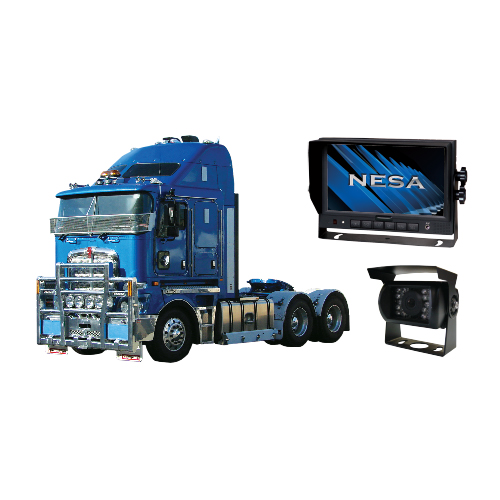

The truck kit (CK-Truck4) is designed for heavy duty applications & comes with 1x heavy duty camera (CCD-073) , 1x 7″ monitor (NSM-7300) and 1x 20m cable.


Additional cameras – CCD-073

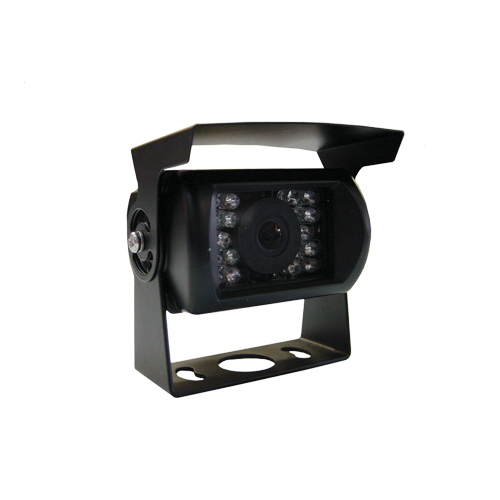

CCD-073 - Colour camera
  • Fully waterproof
  • Weather resistant housing
  • Day/night sensor for auto adjustment
  • View angle: 120º diagonal
  • IR enhanced for night vision
  • IR distance: approx.10m
  • Infared LED light: 18
  • Selectable reverse or forward image
  • Impact resistant
  • Built-in microphone

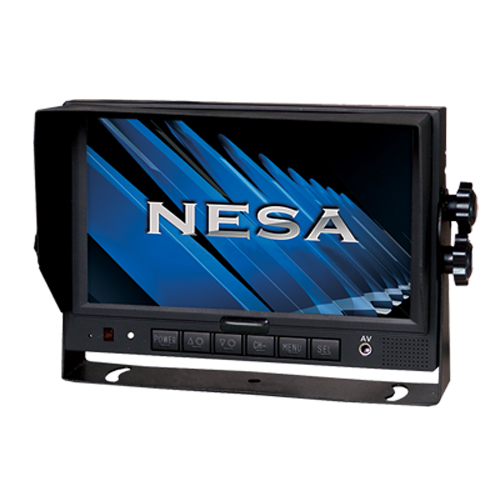

NSM-7300 - Monitor
  • 7” LCD monitor with digital panel
  • Internal Speaker: Yes
  • Video Switching: 3 x Triggers
  • Voltage: 12/24vDC
  • Video Inputs: 3 x AV RCA + 1 front 3.5mm
  • Power Consumption: Approx 6W
  • Brightness: 400cd/m2
  • Dimension (mm): 182 x 122 x 26
  • Dot Pitch: 0.192 (H) x 0.1805 (V)
  • Operating Temperature: -20° - +70°
  • Resolution: 800 x 3 (RGB) x 480
  • Contrast: 500:1
  • Viewing Angle: U-50° , D-60° , R/L- 70°/70°
  • Video Formats: PAL/NTSC Auto
  • Button Backlighting: Yes
  • Mount Options: U Bracket & Flush Mount Shroud
Product Sheet
