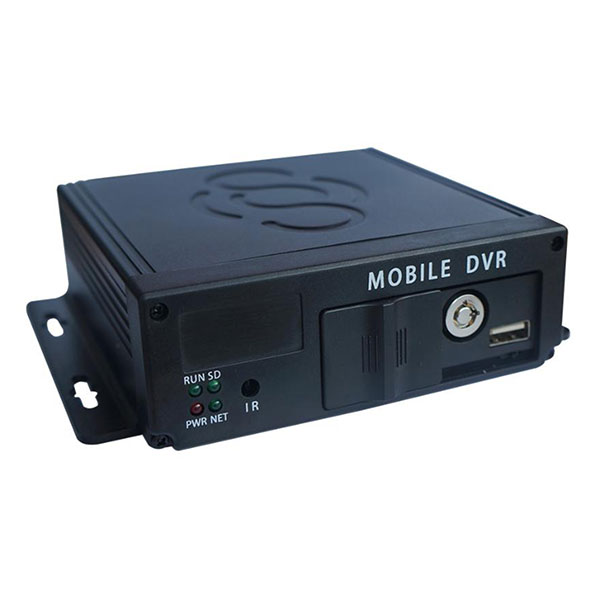

4 Channel Full HD Drive Recorder (DVR-400AHD)
Small and versatile, the DVR-400HD four channel driver recorder is simple to install. The 4pin type connector cables are equipped with standard RCA sockets for use with any AHD camera. Also has 1x Video/Audio output for a monitor.
Motion activated recording, standard recording on power on, the DVR-400AHD can record in 1080p on to a high capacity SD memory card, up to 256Gb (card not included). Suitable for both 12v and 24v vehicles.
Approximate recording times (hours)
|Number of Channels||Resolution & Bitrate||32GB||64GB||128GB||256GB|
|1 Channel||D1 (1Mbps)||75||150||300||600|
|4 Channels||D1 (1Mbps)||19||38||75||150
- Recording Resolutions:
- 1080p: 1 to 3 NTSC Cameras
- 1080p: 1 to 4 PAL Cameras
- 720p: 1 to 4 NTSC or PAL Cameras
- Compatible 1080p or 720p AHD cameras and standard cameras
- Frame Rates: 25fps, 15fps or 5fps
- Storage: SD Card up to 256GB
- Lockable cover for SD Card slot
- Security PIN for login
- Can set device number for different units
- Power: 9~35V DC
- Includes 4pin to RCA adapters, power cable, barrel key for storage lock. Does not include cameras or SD Card.
Only compatible with 1080p and 720p AHD cameras. Will not record 4 NTSC cameras in 1080p, must select 720p recording resolution. For recording 4 cameras in 1080p, they must be PAL cameras.
