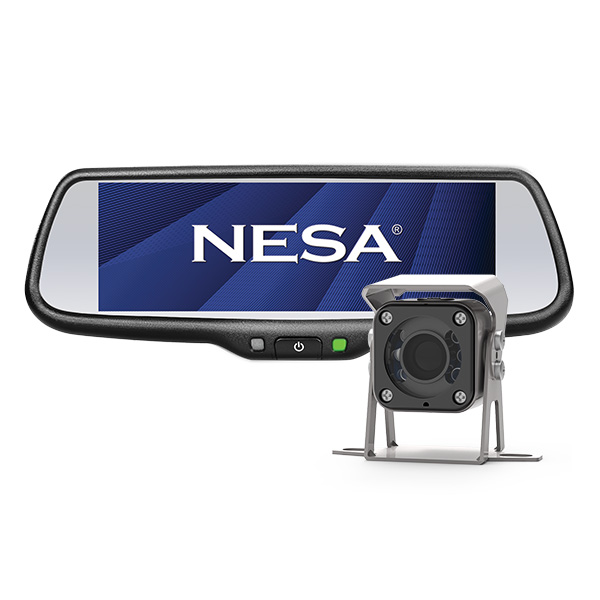

7.3” HD Touchscreen Rear View Mirror with Heavy Duty HD Camera Kit (CK-ECC12073AHD)

7.3” HD Touchscreen Rear View Mirror with Heavy Duty HD Camera Kit (CK-ECC12073AHD)

$679.95incl. GST
Product Enquiry

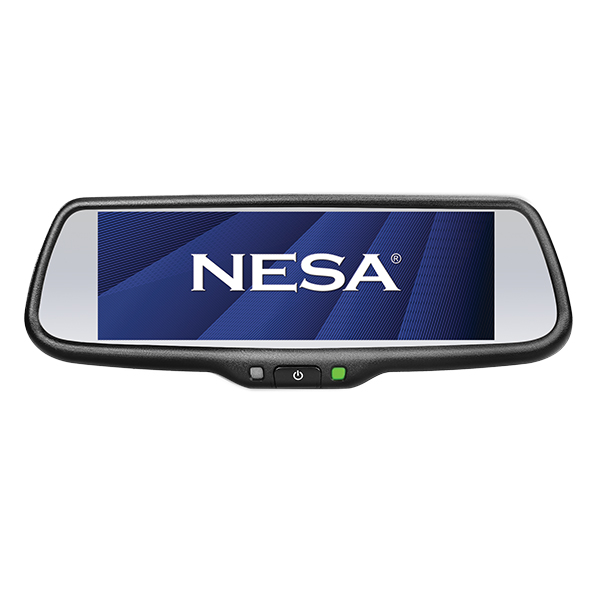

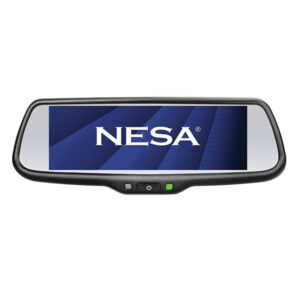

The NSR-73AHD is an OEM style rear view mirror with an embedded super wide 7.3” Full HD 1080p compatible touchscreen display. The display is detailed and clear with automatic screen brightness that adjusts with the ambient light. Designed to replace the factory windscreen mounted rear view mirror, includes a universal mounting bracket with vehicle specific mounting brackets available.

Compatible with a wide range of cameras, including standard CVBS, 720p, 960p and 1080p AHD cameras. The 3 camera inputs (rear/left/right) each have their own individual triggers (reverse gear or indicators) and a mixture of different resolution cameras can be used together. Access the menu via the touchscreen to set each camera’s own individual settings for brightness, contrast, colour and guide lines positioning.

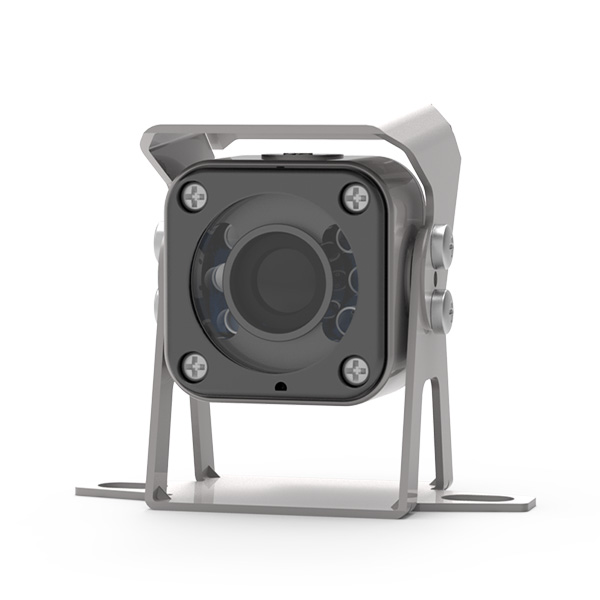

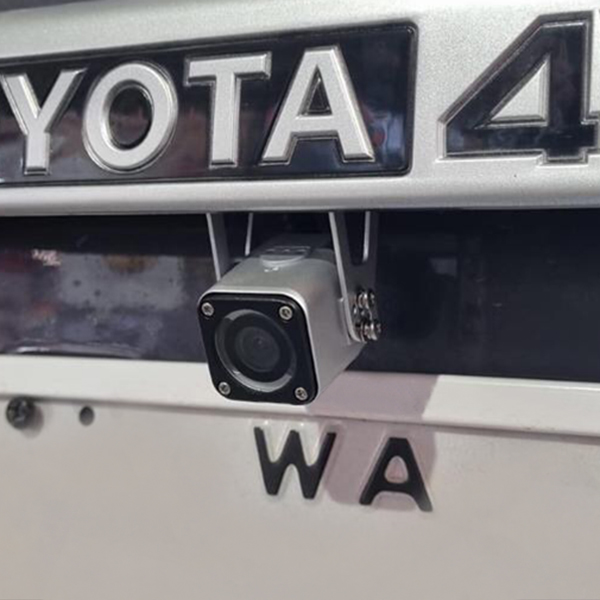

Built tough with a heavy duty alloy casing and scratch resistant glass window to protect the lens and infrared LED’s, the ECC120AHD camera is so tough, that it has a shock resistance rating of up to 100G and vibration resistance of 10G. With a 1/3” 1.23 megapixel CMOS sensor, the ECC120AHD produces high definition 720p video, resulting in more than a 40% increase in clarity and detail compared to a standard 700 TV Lines camera. The auto iris in the lens automatically adjusts for the amount of light to compensate for bright or dark situations. Incredibly versatile, the ECC120AHD can be used as a rear, forward facing or side mount camera with its built in normal/mirror image switching to suit your preferred mounting position. Includes a 6m weather resistant 4 pin DIN cable, 20m version is available.


Vehicle Specific Mounts:

More mounts available on request, If your vehicle is not listed, contact us.

rear view mirror mounts for NESA mirrors part 1 rear view mirror mounts for NESA mirrors part 2 rear view mirror mounts for NESA mirrors part 3 rear view mirror mounts for NESA mirrors part 4




NSR-73AHD Mirror Specs
  • Camera Compatibility: Standard CVBS, 720p AHD, 960p AHD & 1080p AHD (when used with CVBS cameras, image may be stretched horizontally)
  • Touchscreen control for menu and manual camera switching
  • 3x Triggers, one for each camera
  • Resolution: 1280 x 400
  • Video Format: NTSC & PAL (auto)
  • Automatic screen brightness

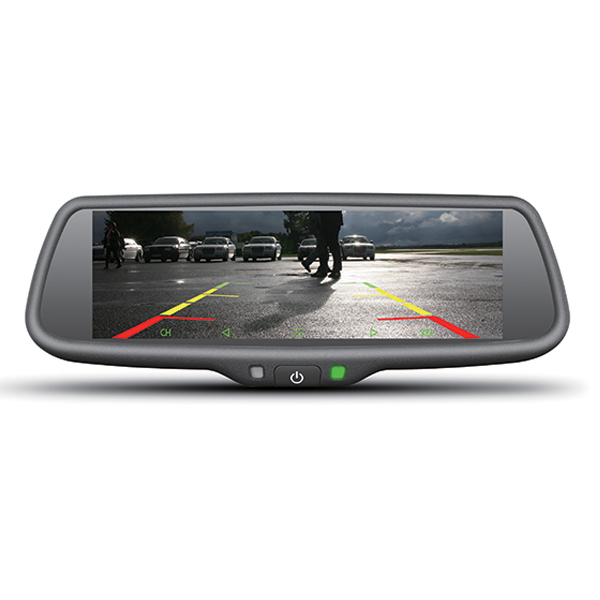

  • Individual camera setting: brightness, contrast, colour, mirror image Adjustable distance guide lines for each camera (vertical/horizontal positions and angles)
  • Power: 10-16v DC
  • Dimensions (mm)(WHD): 240 x 85 x 50
ECC-120AHD6M Camera Specs
  • Sensor Type: 1/3” CMOS
  • Resolution: HD 720p / 1000 TV Lines
  • Diagonal View Angle: 120°
  • Video Format: NTSC
  • Min Illumination: 0 Lux w/ IR LED’s
  • Water Resistant: IP69K
  • Power: 12v DC
  • Dimensions (WHD): 30mm x 30mm x 37mm
  • Optical Axis Correction
  • Auto Electronic Iris
  • Normal / Mirror Image Switching
  • Built In Microphone
  • Removable Sun Shield
  • Vibration and Shock Resistant
  • Weather Resistant 4 Pin DIN Connector
