9” Quad Touch Screen Monitor with 4 Channel Full HD Drive Recorder (NSM-90AHDDVR)

9” Quad Touch Screen Monitor with 4 Channel Full HD Drive Recorder (NSM-90AHDDVR)

$1,369.95incl. GST
Product Enquiry

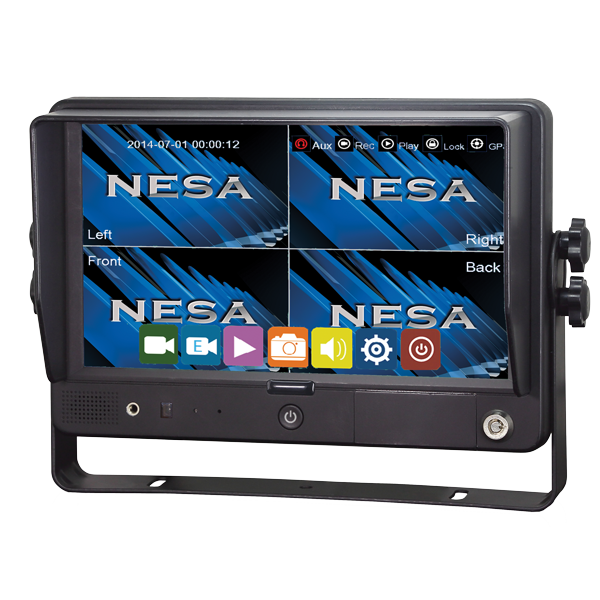

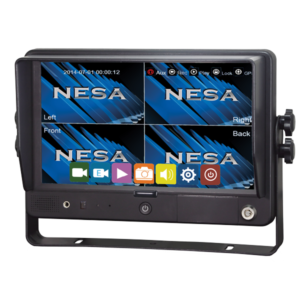

The NSM-90AHDDVR is a quality 9” quad monitor with integrated four channel drive recorder that records in 1080p Full HD on all channels, all operated via a responsive touch screen and the easy to use operating software. It can connect up to four cameras to record real time video to up to four Micro SD cards up to 512GB each (cards not included) and GPS for vehicle route and speed logging.

As a critical driving aid, the monitor can display side/blind spot cameras in full screen when triggered by the vehicles indicators and rear reverse camera switches to full screen when in reverse, all whilst continuously recording all four cameras uninterrupted.

The NSM-90AHDDVR is compatible with AHD cameras up to 1080p and is backwards compatible with standard CVBS cameras (adapter cable required for CVBS cameras).

1080p HD cameras designed specificity for this drive recorder: CCD-073AHD rear camera, CCS-501AHD side camera and AHD-FFW forward facing camera.

DVR record times (hours)
Times are an approximate guide only

Number of ChannelsResolution & Bitrate256GB (4x 64GB)512GB (4x 128GB)2TB (4x 512GB)
1 Channel720p (2Mbps)3006002400
1080p (4Mbps)150
4 Channels720p (2Mbps)75
1080p (4Mbps)3875300
  • 9” Capacitive touch screen
  • Simple, easy to use menu system
  • Multi display modes whist driving
  • Individual triggers for side & rear cameras
  • Triggers enable camera to display in full screen
  • Records to Micro SD cards up to 4x 512GB
  • (Cards not included)
  • Approx record time: 296hrs (4x cams to 4x 512GB)
  • Screen resolution: 1024 x 600
  • Brightness: 600 cd/m²
  • View angle: 85o
  • File format: AVI (H.264)
  • Recording resolutions: 1080p or 720p / 30 or 25fps
  • Operating temp: -20oc ~ +70oc
  • Power: 10-32v DC
  • Camera connectors: 4 Pin Aviation style
