Hybrid 720p/700 TV Lines Mini Box Camera (CCD-HD17H)

Hybrid 720p/700 TV Lines Mini Box Camera (CCD-HD17H)

$139.00incl. GST
Product Enquiry

Description

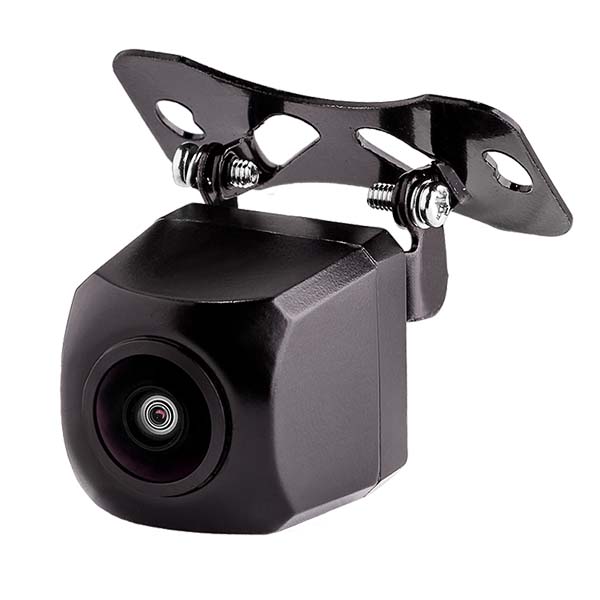

The CCD-HD17H is a premium quality, high resolution mini box camera with 1/4” CMOS sensor. Can be used as an AHD 720p camera or switched to standard mode producing 700 TV lines. The CCD-HD17H has a view angle of 170°, adjustable tilt, universal butterfly mount and a micro connector for easy installation and distance guidelines when used in mirror image mode for reversing (guidelines not visible when used in normal front facing mode). The CCD-HD17H has automatic white balance, gain control and exposure to provide a clear image in all types of lighting conditions. All contained in a tough IP67 waterproof casing.

  • Resolution: 1280 x 720 in AHD mode
  • 700 TV Lines in standard mode
  • Diagonal View Angle: 170°
  • Video Format: NTSC
  • Min Illumination: 0.01 Lux
  • Water Resistant: IP67
  • Power: 12v DC
  • Dimensions (WHD): 21mm x 21mm x 29mm
  • Shutter speed: 1/50 – 1/5,000 sec
  • Automatic white balance
  • Automatic gain control
  • Automatic backlight compensation
  • Automatic exposure
  • Switchable guidelines
  • Fully adjustable butterfly mount
