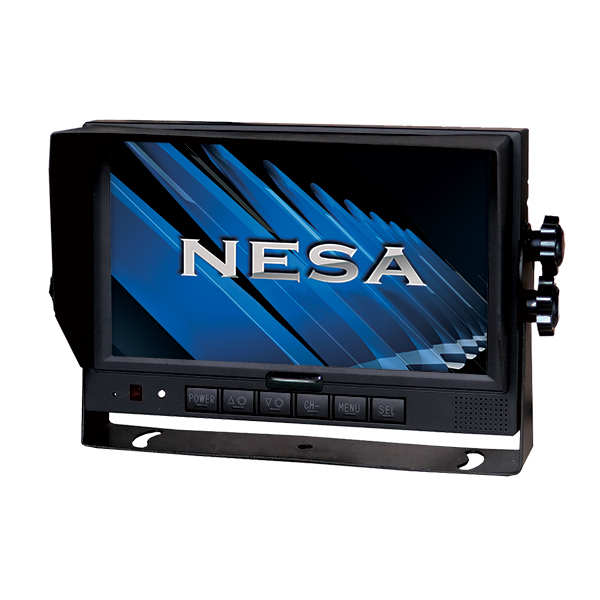

7” Full HD Monitor with 3 Camera Inputs (NSM-7300AHD)

7” Full HD Monitor with 3 Camera Inputs (NSM-7300AHD)

$359.95incl. GST
Product Enquiry

Description

Like its predecessor, the NSM-7300, the new AHD version is built tough with a solid reputation for reliability. Able to use newer technology Analogue High Definition (AHD) 1080p cameras as well as the older standard definition cameras. Can also mix different camera types if multiple cameras are already installed and the monitor is just being upgraded. Other improvements over the previous model include: Higher contrast, increased brightness, improved view angle and a higher resolution screen (1024×600 vs 800×480). PAL and NTSC auto switch as standard. Can operate on 12v or 24v systems, and outputs 12v to the cameras even when used on 24v.

Supplied with a U bracket for dash mounting, a flush mount shroud as a different mounting option, removable sun shield, IR remote control and 3 x looms as well as 4 pin to RCA adapters for universal camera connection.

HD cameras designed specificity for this monitor: CCD-073AHD rear camera & CCS-501AHD side camera. Can still be used with  standard cameras.

  • 7” LCD screen
  • Compatible with 1080p AHD cameras, plus older standard cameras
  • 3 camera channels each with own trigger
  • Screen resolution: 1024 x 600
  • Colour depth: 24bit
  • Contrast: 800:1
  • Brightness: 500 cd/m²
  • View angle: U: 85°, D: 85°, R/L: 85°/85°
  • Built in 1w speaker
  • Video formats: PAL & NTSC
  • Power input: 10-32v
  • Power output: 12v
  • Operating temp: -20 ~ +70ºC
  • Size: 182mm (W) x 122mm (H) x 29mm (D)
  • Includes: U bracket, flush shroud, remote, looms, 4 pin – RCA adapters
