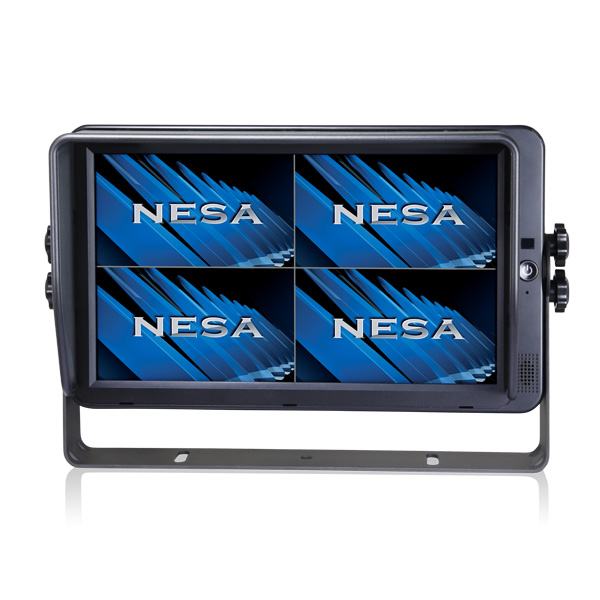

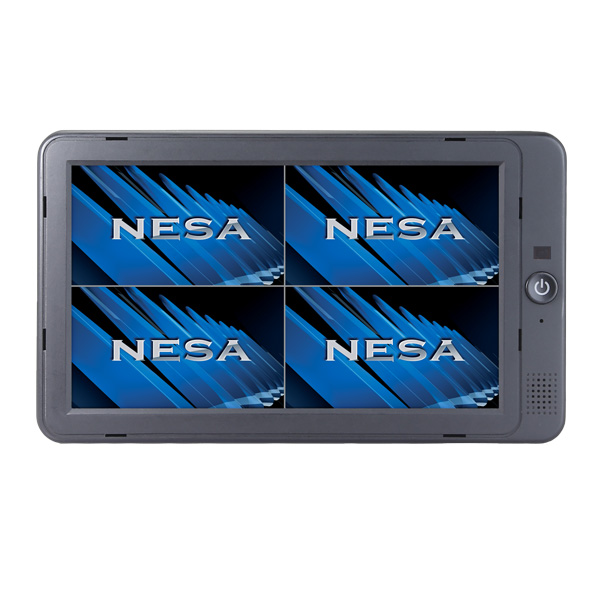

10” Touchscreen Quad View Monitor for DVR-4200AHD (NSM-DVR42T10)

10” Touchscreen Quad View Monitor for DVR-4200AHD (NSM-DVR42T10)

$799.95incl. GST
Product Enquiry


Specifically designed for use with the DVR-4000HDQ or DVR-4200AHD, the NSM-DVR42T10 supports AHD 1080p/720p camera to display rich and detailed video unmatched by standard definition cameras. The intuitive capacitive touchscreen not only controls the on-screen menu of the DVR, but when you touch a camera feed, that camera switches to full screen. Touch again to go back to multi-camera mode. Many different view modes available.

Note: Designed for use with the DVR-4000HDQ or DVR-4200AHD only. Cannot be used stand-alone.

5m extension cable available – DVR-42EXTKIT5M

  • 4 Channel Quad View Monitor
  • Capacitive touchscreen
  • Full control of menu of DVR-4000HDQ & DVR-4200AHD
  • Supports up to 4 Full HD 1080p cameras
  • Multiple image display modes
  • Image view options: Flip, Normal, Zoom
  • 5 triggers with priority/delay options
  • Screen resolution: 1024 x 600
  • Internal 1.5W speaker
  • VGA input
  • Operating temp: -20º ~ +70º
  • Power: 10-32v with 12v output to cameras
  • Removable Sun Shield
  • Weather Resistant 4 Pin Mini DIN Connectors
  • Dimensions: 267mm x 160mm x 30mm
Product Sheet
