Description

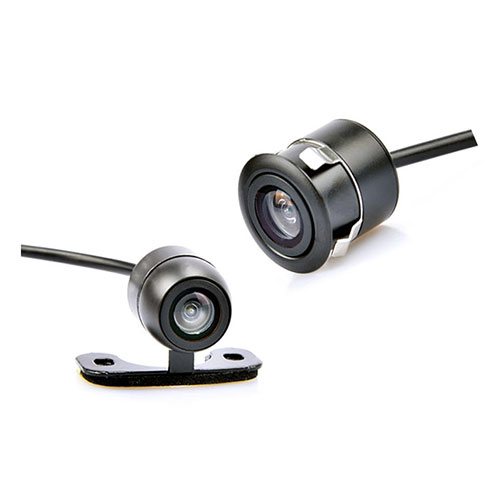

The CCD-DUAL170 is a versatile CCD micro camera supplied with 2 heads to allow for a choice of mounting options. The butterfly mount is used to screw to number plates or under tailgate handles while the spare head allows you to flush mount into the bumper. High resolution sensor with 600 TV lines and 733 x 493 pixels. The camera cable connects via a mini plug to allow threading through small drill holes. Camera to monitor plug is universal RCA to suit any monitor.

SPECIFICATIONS

• CCD sensor
• View Angle: 170°
• Horizontal Resolution: 600 TV lines
• Effective Pixels:  733 x 493
• TV system: NTSC
• Minimum Illumination: 0.1Lux
• White Balance: Auto
• Waterproof: IP67
• Power: 12vDC
• 6m cable with mini plug-RCA included
