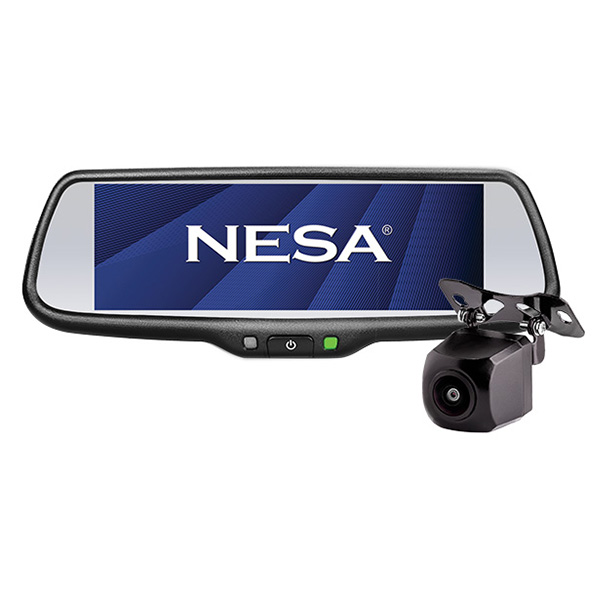

7.3” HD Touchscreen Rear View Mirror with HD Camera Kit (CK-HD17H73AHD)

7.3” HD Touchscreen Rear View Mirror with HD Camera Kit (CK-HD17H73AHD)

$499.00incl. GST
Product Enquiry

SKU: CK-HD17H73AHD Categories: ,

Description

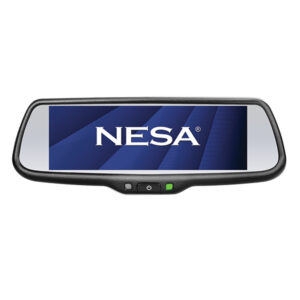

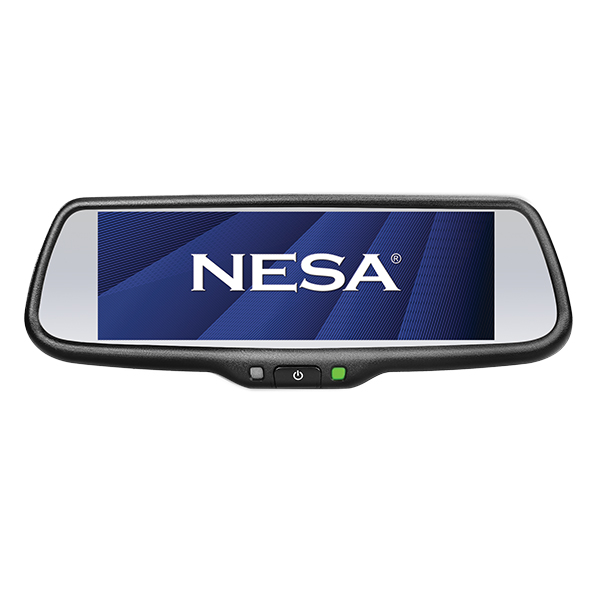

The NSR-73AHD is an OEM style rear view mirror with an embedded super wide 7.3” Full HD 1080p compatible touchscreen display. The display is detailed and clear with automatic screen brightness that adjusts with the ambient light. Designed to replace the factory windscreen mounted rear view mirror, includes a universal mounting bracket with vehicle specific mounting brackets available.

Compatible with a wide range of cameras, including standard CVBS, 720p, 960p and 1080p AHD cameras. The 3 camera inputs (rear/left/right) each have their own individual triggers (reverse gear or indicators) and a mixture of different resolution cameras can be used together. Access the menu via the touchscreen to set each camera’s own individual settings for brightness, contrast, colour and guide lines positioning.

The CCD-HD17H is a premium quality, high resolution mini box camera with 1/4” CMOS sensor. Can be used as an AHD 720p camera or switched to standard mode producing 700 TV lines. The CCD-HD17H has a view angle of 170°, adjustable tilt, universal butterfly mount and a micro connector for easy installation and distance guidelines when used in mirror image mode for reversing (guidelines not visible when used in normal front facing mode). The CCD-HD17H has automatic white balance, gain control and exposure to provide a clear image in all types of lighting conditions. All contained in a tough IP67 waterproof casing.



Vehicle Specific Mounts:

More mounts available on request, If your vehicle is not listed, contact us.

rear view mirror mounts for NESA mirrors part 1 rear view mirror mounts for NESA mirrors part 2 rear view mirror mounts for NESA mirrors part 3 rear view mirror mounts for NESA mirrors part 4



NSR-73AHD Mirror Specs
  • Camera Compatibility: Standard CVBS, 720p AHD, 960p AHD & 1080p AHD (when used with CVBS cameras, image may be stretched horizontally)
  • Touchscreen control for menu and manual camera switching
  • 3x Triggers, one for each camera
  • Resolution: 1280 x 400
  • Video Format: NTSC & PAL (auto)
  • Automatic screen brightness

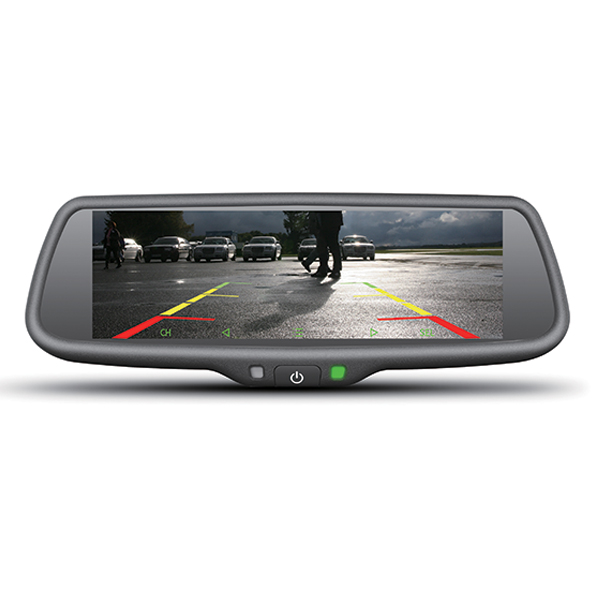

  • Individual camera setting: brightness, contrast, colour, mirror image Adjustable distance guide lines for each camera (vertical/horizontal positions and angles)
  • Power: 10-16v DC
  • Dimensions (mm)(WHD): 240 x 85 x 50
CCD-HD17H Camera Specs
  • Resolution: 1280 x 720 in AHD mode
  • 700 TV Lines in standard mode
  • Diagonal View Angle: 170°
  • Video Format: NTSC
  • Min Illumination: 0.01 Lux
  • Water Resistant: IP67
  • Power: 12v DC
  • Dimensions (WHD): 21mm x 21mm x 29mm
  • Shutter speed: 1/50 – 1/5,000 sec
  • Automatic white balance
  • Automatic gain control
  • Automatic backlight compensation
  • Automatic exposure
  • Switchable guidelines
  • Fully adjustable butterfly mount
