Heavy Duty Hybrid AHD Rear View Camera (NRC-80H)

Heavy Duty Hybrid AHD Rear View Camera (NRC-80H)

$229.95incl. GST
Product Enquiry

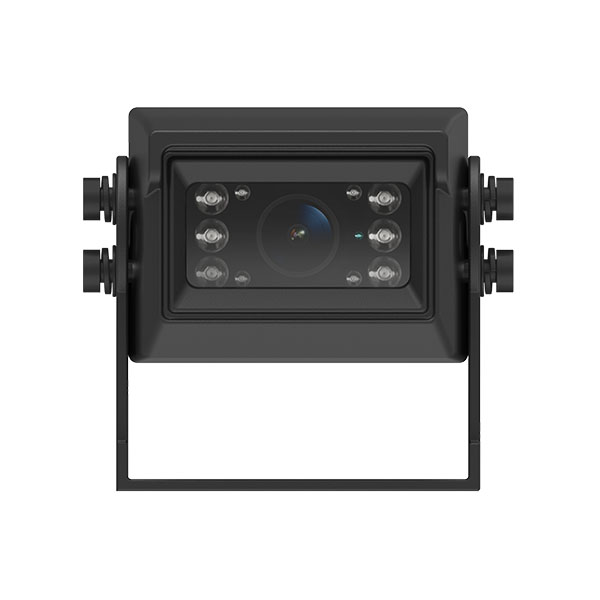

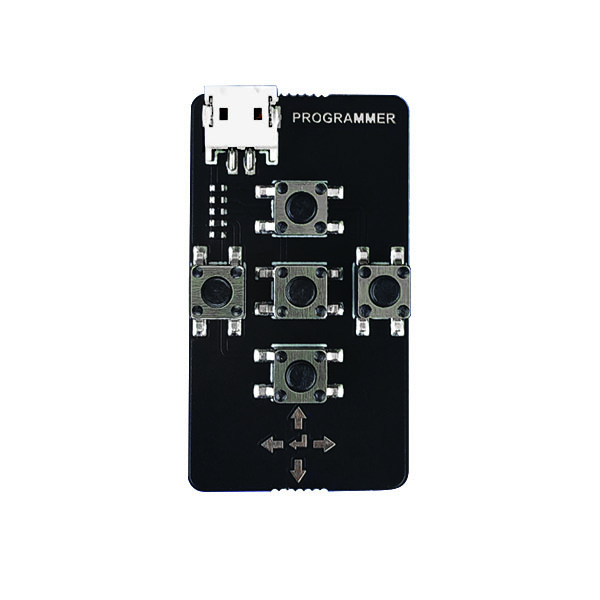

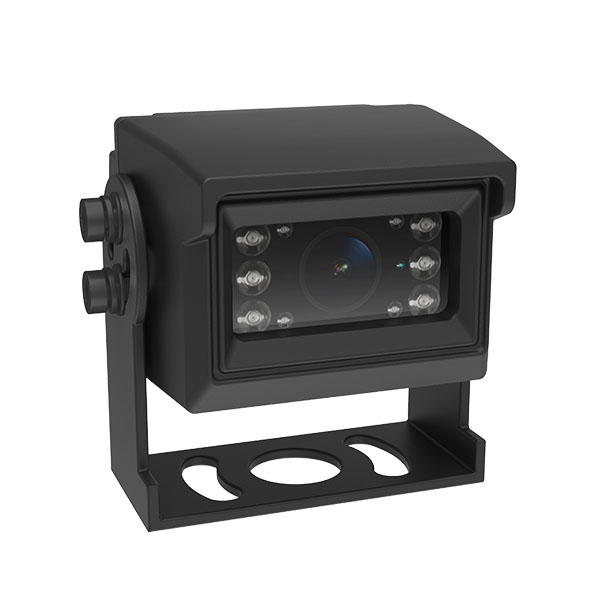

The NRC-80H is an advanced programmable rear view camera, designed to be used with any existing camera and monitor system. Programmable features include: switching between 960p AHD mode for use on AHD monitors and 900TV lines standard CVBS mode for standard monitors; change TV system type (NTSC or PAL); switch between mirror and normal image; exposure, sensitivity and brightness control; backlight adjustment; white balance; noise reduction; sharpness, and much more. All settings are adjusted via the included programming module and the menu system is clearly displayed on your monitor. The NRC-80H is built with a heavy duty IP69K waterproof housing to withstand the toughest conditions which makes it perfect for commercial applications.

  • Sensor Type: 1/3” CMOS
  • Resolution: 900 TVL / 960 AHD
  • Diagonal View Angle: 150°
  • Video Format: NTSC & PAL
  • Min Illumination: 0 Lux w/ IR LED’s
  • Water Resistant: IP69K
  • Power: 12v/24v DC
  • Dimensions (WHD): 52mm x 40mm x 54mm
Programmable Features:
  • Output Resolution (AHD or CVBS)
  • TV System Type (NTSC or PAL)
  • Mirror and Normal Image Switching
  • Exposure/Shutter Speed
  • Backlight Adjustment
  • White Balance
  • Sharpness... Plus Much More
