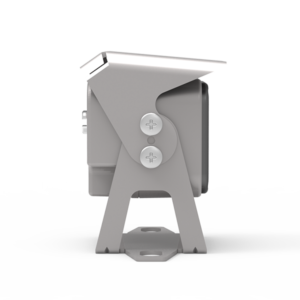

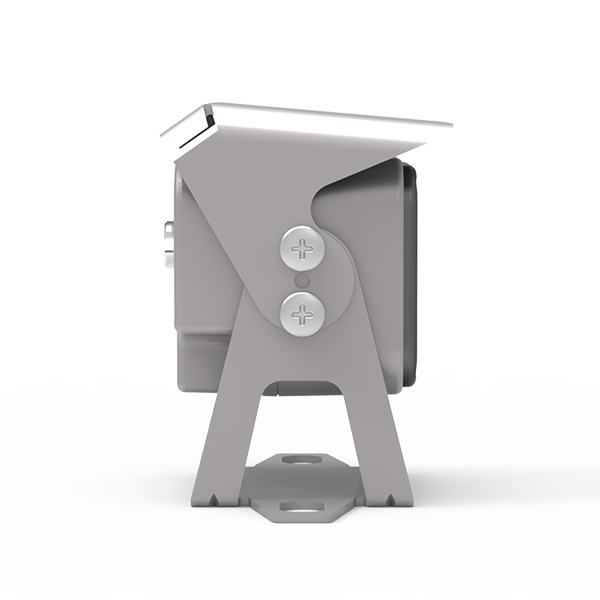

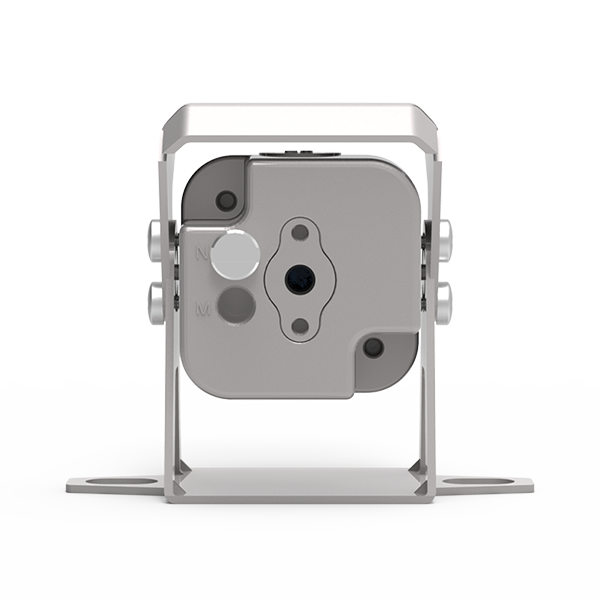

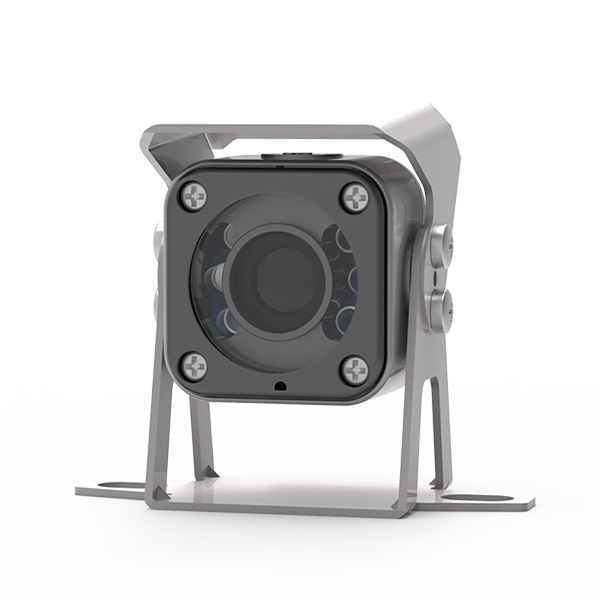

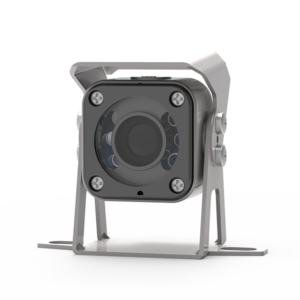

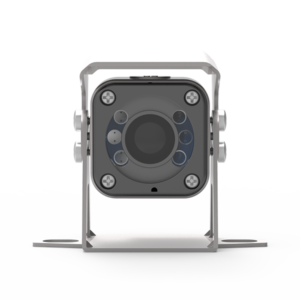

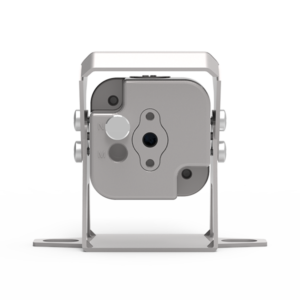

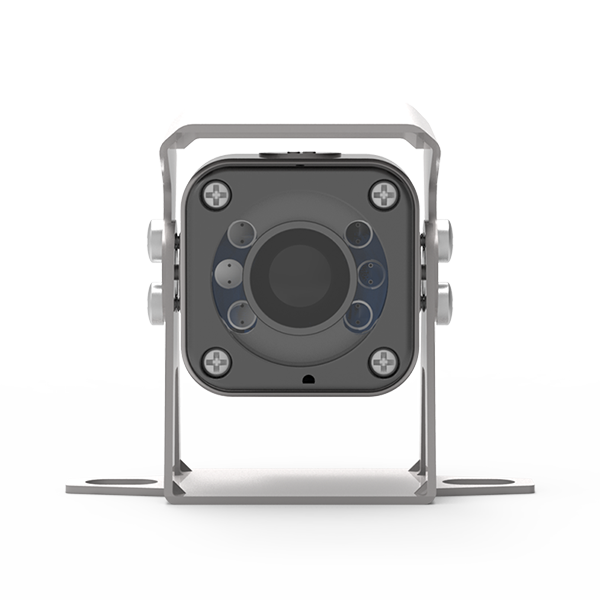

Premium Heavy Duty High Resolution Reverse Camera (ECC120NTSC)

Premium Heavy Duty High Resolution Reverse Camera (ECC120NTSC)

$289.00incl. GST
Product Enquiry


Built tough with a heavy duty alloy casing and scratch resistant glass window to protect the lens and infrared LED’s. The ECC120NTSC is so tough, that it has a shock resistance rating of up to 100G and vibration resistance of 10G. With a 1/3” 1.23 megapixel CMOS sensor, the ECC120NTSC produces high quality 700 TV Lines video. The auto iris in the lens automatically adjusts for the amount of light to compensate for bright or dark situations. Incredibly versatile, the ECC120NTSC can be used as a rear, forward facing or side mount camera with its built in normal/mirror image switching to suit your preferred mounting position. Includes a 6m weather resistant 4 pin mini DIN cable, 20m version is available.

  • Sensor Type: 1/3” CMOS
  • Resolution: 700 TV Lines
  • Diagonal View Angle: 120°
  • Video Format: NTSC
  • Min Illumination: 0 Lux w/ IR LED’s
  • Water Resistant: IP69K
  • Power: 12v DC
  • Dimensions (WHD): 30mm x 30mm x 37mm
  • Optical Axis Correction
  • Auto Electronic Iris
  • Normal / Mirror Image Switching
  • Built In Microphone
  • Removable Sun Shield
  • Vibration and Shock Resistant
  • Weather Resistant 4 Pin Mini DIN Connector
